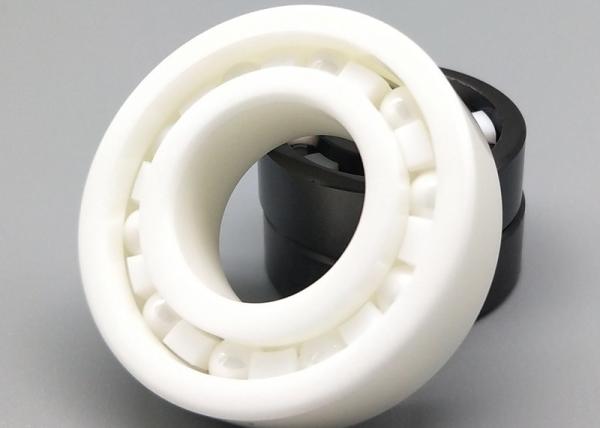

    High Speed Ceramic Bearings, CE6806 ZrO2 Ceramic Skate Bearings

    Ask Lasest Price
    Brand Name : WI-TECH
    Model Number : 6806
    Price : 12USD--5000USD
    Payment Terms : T/T, Western Union
    Supply Ability : 100,000 pcs/month
    Delivery Time : 10-30 days
    • Product Details
    • Company Profile

    High Speed Ceramic Bearings, CE6806 ZrO2 Ceramic Skate Bearings

    High Speed Ceramic Bearings, CE6806 ZrO2 Ceramic Skate Bearings


    Ceramic bearings are comprised of ceramic rolling elements (balls) enclosed in a ferrous (typically steel)

    inner and outer race. Since these bearings are constructed from many materials, they often operate in

    hybrid capacities. We also build ceramic bearings (i.e., bearings with ceramic races), but they are not

    as common because they are less durable.


    The reduced weight of ceramic bearings also contributes to their overall enhanced performance over

    steel bearings. Ceramic materials can weigh up to 40% less than comparable steel bearings. This

    reduced weight translates to decreased centrifugal loads exerted on the outer race as the bearing

    spins. This reduction of forces allows ceramic bearings to operate up to 20–40% faster than

    conventional steel bearings while using considerably less energy to maintain their speed.


    ZrO2 CERAMIC DEEP GROOVE BALL BEARING CE6806


    Specification of Deep Groove Ball Bearing ZrO2 /Si3N4 /SiC /Al2O3 /POM
    Bearing ModelBore DiaOuter DiaWidthDynamic RadialStatic RadialMax Speed
    (d)(D)(B)(Newtons)(Newtons)(X1000 RPM)
    6022 mm7mm2.8mm98.430.942.6
    6033 mm9mm3mm6945.340.2
    6044 mm12mm4mm244.28433.6
    6055 mm14mm5mm339121.830
    6066 mm17mm6mm577.2203.127
    6077 mm19mm6mm595.8215.125.8
    6088mm22mm7mm839.7330.924
    6099mm24mm7mm855.9346.522.8
    600010 mm26mm8mm136558521.6
    600112 mm28mm8mm153072019.2
    600215 mm32mm9mm168085516.2
    600317 mm35mm10mm180097515
    600420 mm42mm12mm2820151512.6
    600525 mm47mm12mm3030175510.8
    600630 mm55mm13mm396024759
    600735 mm62mm14mm477030907.8
    600840 mm68mm15mm501034507.2
    600945 mm75mm16mm630045306.6
    601050 mm80mm16mm654049805.94
    601155 mm90mm18mm849063605.4
    601260 mm95mm18mm882069605.1
    601365 mm100mm18mm915075604.8
    601470 mm110mm20mm1143092704.26
    601575 mm115mm20mm11880100504.02
    601680 mm125mm22mm14280119403.78
    601785 mm130mm22mm14850129303.6
    601890 mm140mm24mm17460149103.36
    601995 mm145mm24mm18120161703.18
    6020100 mm150mm24mm18060162603.18
    6021105 mm160mm26mm21690197402.88
